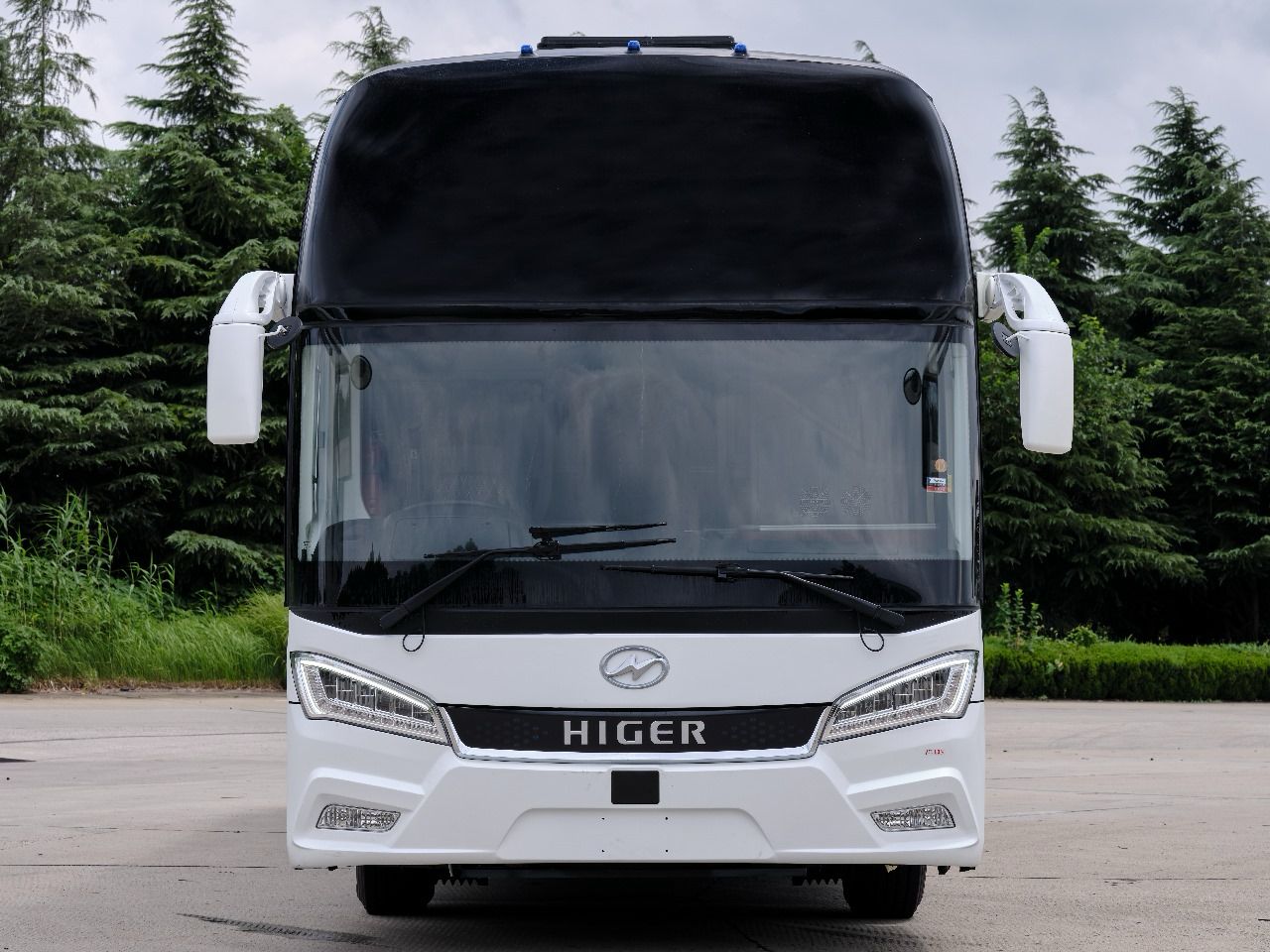

KLQ6127 BQR

KLQ6127 BQR

Categories: ,

Description

KLQ6128K CATALOGE
 Model(型号)
KLQ6127 BQR
Overall dimensions(mm)(尺寸) 12460*2550*3820
GVW (KG)(总重量) 19000
complete vehicle curb mass(KG)(整备质量) 15000
Engine (发动机) WEICHAI
Gear Box(变速箱) ZF 6S1610
Suspension(悬架) AIR Suspension
Max Speed(KMH)(最高时速) 140
approach / departure angle(接近角和离去角°) 11.8\10
Wheelbase(mm)(轴距) 6350
Chassis
Item Standard
Engine Model(发动机) WP10H 375
Power (hp)(马力) 375 HP 276KW@2100rpm
Emission(排放标准) Euro III
Gearbox(变速箱) ZF 6S1650BO
Propeller shaft(传动轴)  Strengthen Propeller Shaft
Retarder(缓速器) ZF Hydrolic Retarder
Suspension(悬架) 2*4 air bagand WABCO ABS ECAS
Steering(转向)  ZF Power Steering
Axle(轴)Front & Rear Dongfeng/Fengsheng 6.5T & Dongfeng/Fengsheng 13T,  Front & Rear Disc Brake
Braking(刹车) Dual-circuit Service brake, Spring energy parking brake
Tyre(轮胎) 295/80R22.5 Tubeless
Spare tire(备胎) YES
CAN System(CAN系统) YES
Tank capacity(L)(油箱容量) 400
Air Dry(空气干燥器) WABCO
Lubricating System(润滑系统) YES
Clutch(离合器)  SACHS Diaphragm Spring Clutch 430 mm (17″)
Parking Braking(驻车系统) Energy Storage Spring
ABS(防抱死) WABCO AEBS
 Wheel Cover(不锈钢轮罩) Wheel cover Allue Core with ABS sensor
