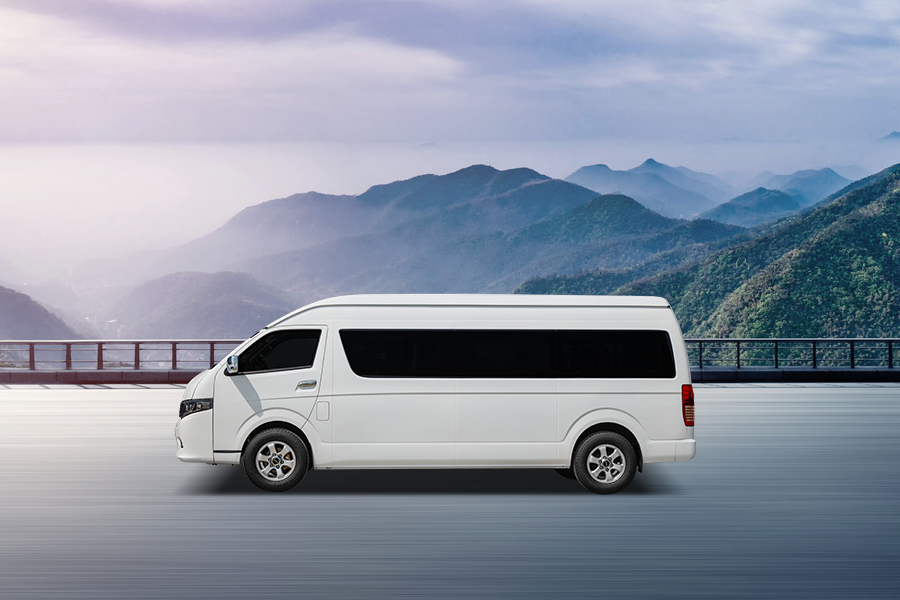

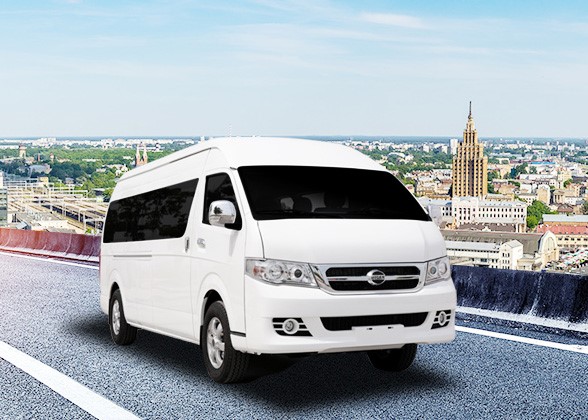

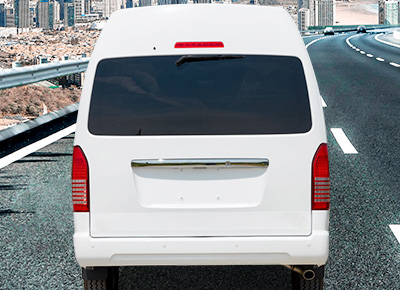

HIACE H6C
Description
ENGINE |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model & Engine Model | KLQ6600/ 4RB2（Euro III) Technology source: Toyota 2 |
||||||||||
| Emission | 4RB2（Euro III) Technology source: Toyota |
||||||||||
| Fuel Type | Gasoline | ||||||||||
| Displacement | 2438 cc | ||||||||||
| Rated power (HP) | 138 rpm | ||||||||||
| Max. Torque (Nm/rpm) | 300Nm@1600-2400rpm | ||||||||||
TRANSMISSION |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | ZM001 5MT | ||||||||||
| No. of Gears | 5 Forward & 1 Reverse ) | ||||||||||
SUSPENSION |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Front & Rear: | Front double wishbone independent suspension/ rear leaf spring dependent suspens | ||||||||||
| Driving mode | Front Engine Rear Drive | ||||||||||

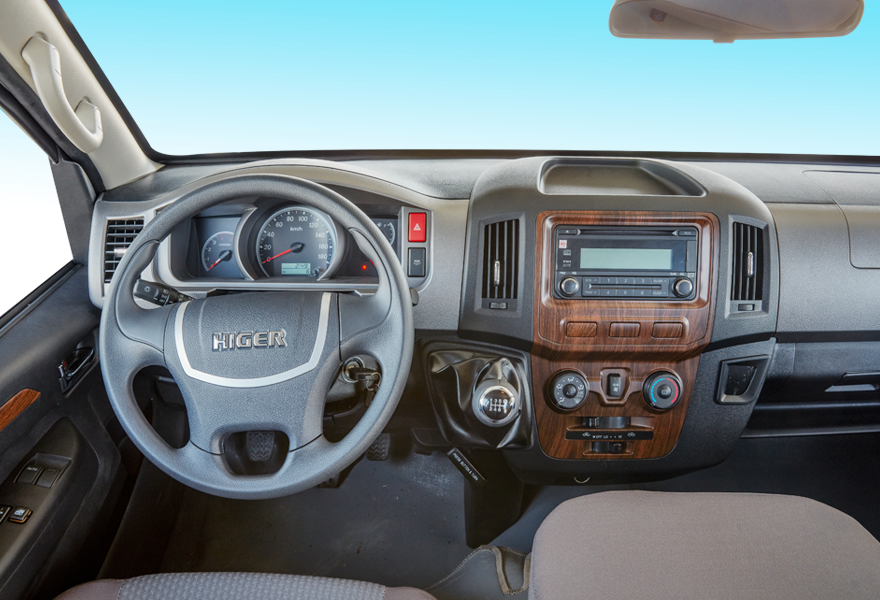

STEERING & CLUTCH |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Steering | hydraulic power steering，Angle adjustable | ||||||||||
| Clutch type | Single piece dry diaphragm spring | ||||||||||
BRAKES |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Front & Rear | Front disk rear drum | ||||||||||
| Parking Brakes | Mechanical | ||||||||||

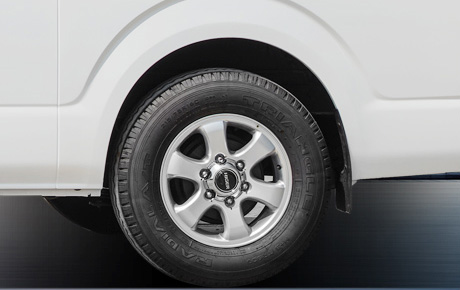

WHEELS & TYRES |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tyres: Radical – 195R15C
Wheels rim: Aluminium alloy wheel Rims *4 |
|||||||||||
CHASSIS :
DIMENSIONS(mm) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheel Base | 3110 | ||||||||||
| Overall Length | 5990 | ||||||||||
| Overall Width | 1880 | ||||||||||
| Overall Height | 2335 | ||||||||||
| Curb Weight（kg） | – | ||||||||||
| Turning Radius (m) | 6.3 | ||||||||||
| Ground Clearance(mm) | 180 | ||||||||||
CAPACITY |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Fuel Tank | 70 | ||||||||||

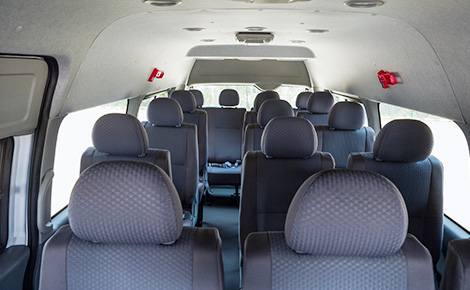

SEATING CAPACITY |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Seating Capacity | 18(17-22) | ||||||||||
