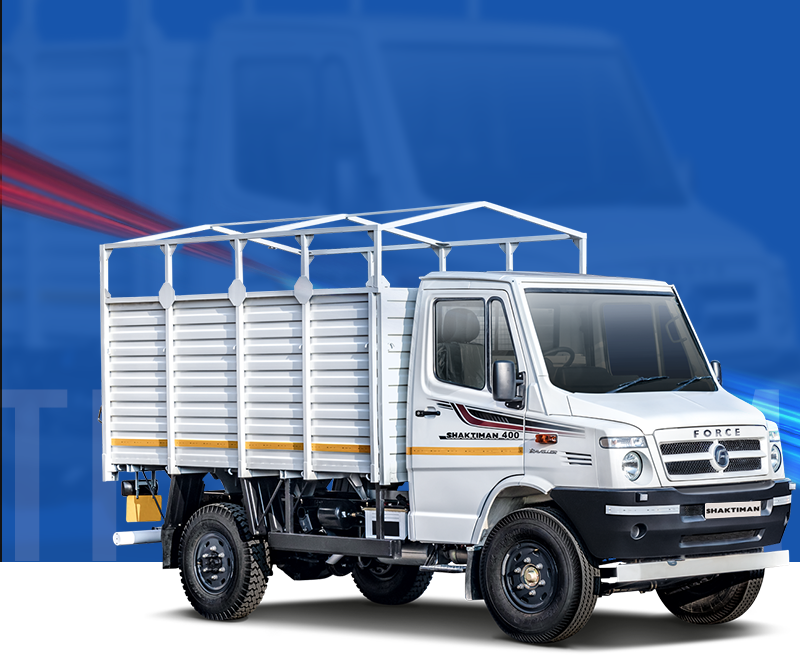

SHAKTIMAN 400
Description
ENGINE |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | FM 2.6 CR | ||||||||||
| Emission | BS-IV | ||||||||||
| Type | 4-Cylinder, Common Rail | ||||||||||
| Displacement | 2596 cc | ||||||||||
| Max Output | 90hp (67kW) @ 2800 rpm | ||||||||||
| Max Torque | 250 Nm @ 1400-2400 rpm | ||||||||||
TRANSMISSION |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Synchromesh | ||||||||||
| No. of Gears | 5 Forward-1 Reverse (5th gear – overdrive) | ||||||||||
AXLES |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Front | Dead Rigid | ||||||||||
| Rear | Live Rigid | ||||||||||
SUSPENSION |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Front | Semi Elliptical Leaf Spring with Hydraulic Telescopic Shock Absorbers and Anti Roll Bar | ||||||||||
| Rear | Semi Elliptical Leaf Spring with Hydraulic Telescopic Shock Absorbers | ||||||||||
STEERING |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Mechanical / Power Steering (Optional) | ||||||||||
| Turning Radius | 6.2m | 6.0m | |||||||||
BRAKES |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Service Brakes | Hydraulic- Dual Circuit (Vacuum Assisted) | ||||||||||
| Front | Drum Brakes | ||||||||||
| Rear | Drum Brakes With LCRV | ||||||||||
| Parking | Mechanical, Acting on Rear Axle | ||||||||||
WHEELS & TYRES |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | 8.25 X 16-16PR | ||||||||||
DIMENSIONS(mm) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheel Base | 3100 | ||||||||||
| Overall Length | 5170 | ||||||||||
| Overall Width | 2030 HSD / 1980 FSD | ||||||||||
| Overall Height | 2930HSD/2370FSD | ||||||||||
| Overhang Front | 870 | ||||||||||
| Overhang Rear | 1200 | ||||||||||
| Cargo Box (L x W x H) | 2970 X 1930 X 1200 | ||||||||||
| Ground Clearance | 227 | ||||||||||
WEIGHTS( kg ) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Permissible FAW | 2400 | ||||||||||
| Max. Permissible RAW | 3700 | ||||||||||
| Max. Permissible GVW | 6100 | ||||||||||
| Rated Payload | 3500HSD/3620FSD | ||||||||||
CAPACITY |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Fuel Tank | 70 Liters | ||||||||||
SEATING CAPACITY |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Seating Capacity | D+2 | ||||||||||
