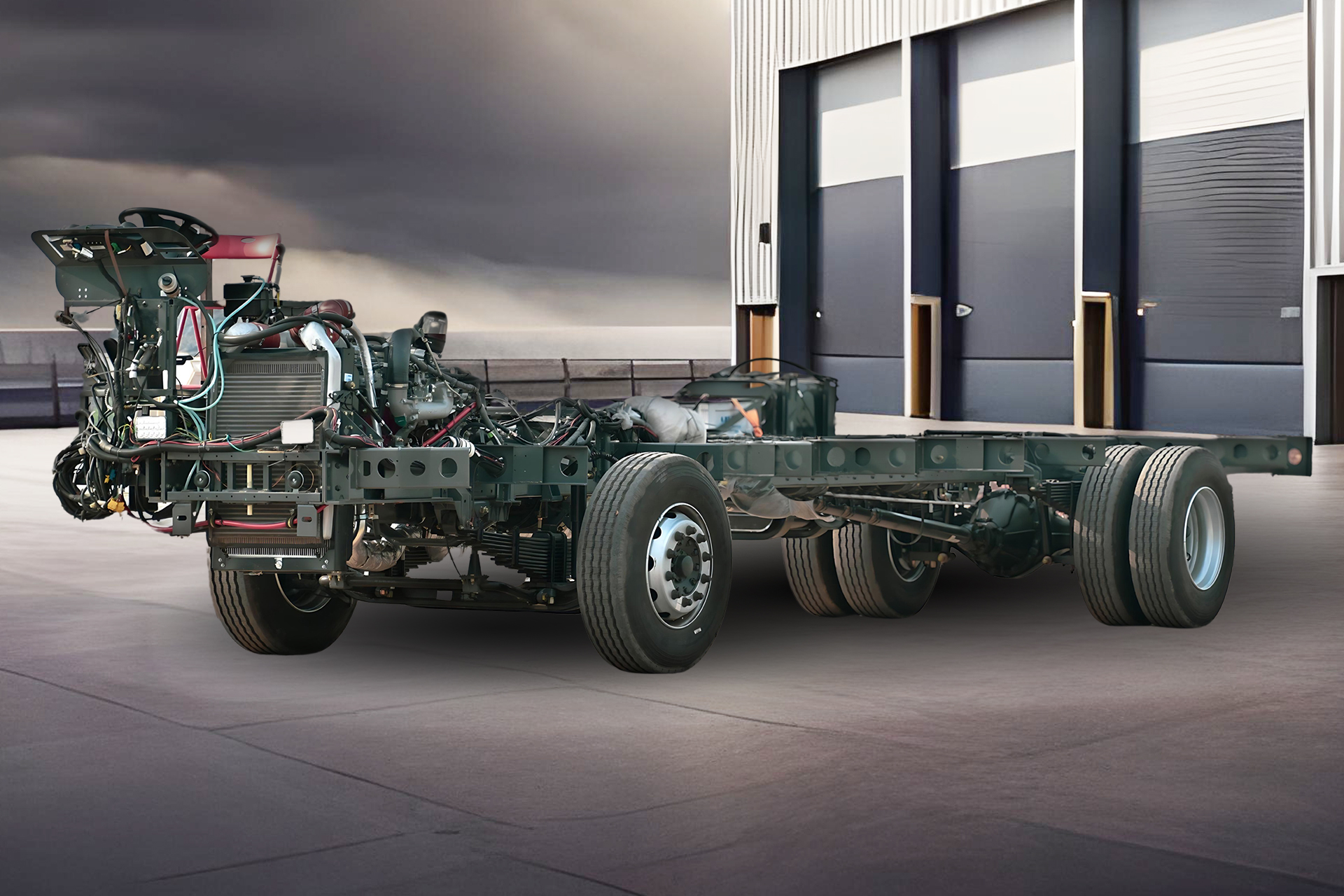

KLQ6126DFR Chassis
Description
|
|||||||||||
| Model | KLQ6126DFR | ||||||||||
| Overall dimensions(mm)（尺寸） | 11465*2500 | ||||||||||
| GVW (KG) | |||||||||||
| complete vehicle curb mass(KG) | |||||||||||
| Engine | HINO | ||||||||||
| Gear Box | Fast 6DS100T Gearbox | ||||||||||
| Suspension | Leaf Suspension | ||||||||||
| Max Speed(KMH) | 100 | ||||||||||
| Wheelbase（mm） | 5800 | ||||||||||
| Chassis | |||||||||||
| Item | Standard | ||||||||||
| Engine Model | HINO JO8E-UU | ||||||||||
| Power (hp) | 244HP | ||||||||||
| Emission | Euro III | ||||||||||
| Gearbox | Fast 6DS100T Gearbox | ||||||||||
| Propeller shaft | Strengthen Propeller Shaft | ||||||||||
| Retarder | TELMA | ||||||||||
| Suspension | Leaf Suspension | ||||||||||
| Steering system | Power-assisted Steering | ||||||||||
| Axle Front & Rear | Fangsheng Front & Rear Axle | ||||||||||
| Braking System | Front Disc, Rear Drum, Brake Auto Adjuster | ||||||||||
| Tyre | Standard Higer Tyre 295/80R22.5(Tubeless) | ||||||||||
| Tank capacity(L) | 300 | ||||||||||
| Accumulator | Equipped(24V) | ||||||||||
| Clutch | SACHS 430 | ||||||||||
| Parking System | Dual-Circuit Service Brake, Spring Energy Parking Brake | ||||||||||
| ABS | WABCO ABS | ||||||||||
| Other | Air Suspension drive seat, Height level can be auto adjusted Clearance & Steering & braking Lamps and 1 spare tire included | ||||||||||
