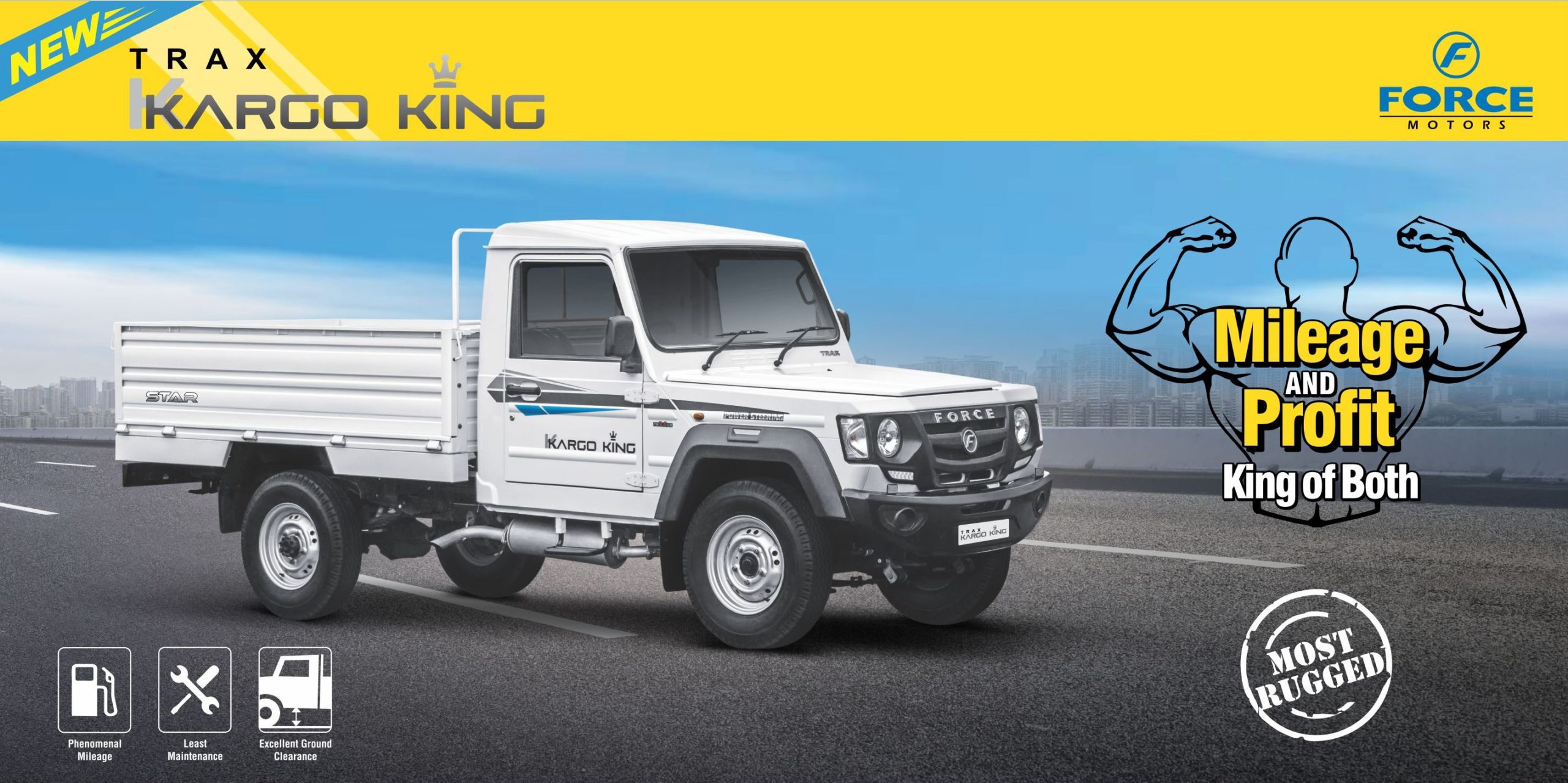

TRAX KARGO KING
Description
ENGINE |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | FM 2.6 CR | ||||||||||
| Emission | BS-III | ||||||||||
| Type | 4-Cylinder, DI | ||||||||||
| Displacement | 2596 cc | ||||||||||
| Max Output | 60hp@3200 rpm | ||||||||||
| Max Torque | 158 Nm @ 2000-2200 rpm | ||||||||||
TRANSMISSION |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Synchromesh | ||||||||||
| No. of Gears | 5 Forward-1 Reverse (5th gear – overdrive) | ||||||||||
AXLES |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Front | Dead Rigid | ||||||||||
| Rear | Live Rigid | ||||||||||
SUSPENSION |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Front | Semi Elliptical Leaf Spring with Hydraulic Telescopic Shock Absorbers and Anti Roll Bar | ||||||||||
| Rear | Semi Elliptical Leaf Spring with Hydraulic Telescopic Shock Absorbers | ||||||||||
STEERING |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Power Steering | ||||||||||
| Turning Radius | 6.m | ||||||||||
BRAKES |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Service Brakes | Hydraulic- Dual Circuit (Vacuum Assisted) | ||||||||||
| Front | Disc Brakes | ||||||||||
| Rear | Drum Brakes | ||||||||||
| Parking | Mechanical, on Rear wheels | ||||||||||
WHEELS & TYRES |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | 7.00 R15 | ||||||||||
DIMENSIONS(mm) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheel Base | 3050 | ||||||||||
| Overall Length | 5032 | ||||||||||
| Overall Width | 1660 | ||||||||||
| Overall Height | 2105 | ||||||||||
| Overhang Front | 727 | ||||||||||
| Overhang Rear | 1275 | ||||||||||
| Cargo Box (L x W x H) | 8.5X5.5X1.8 Feet | ||||||||||
| Ground Clearance | 210 | ||||||||||
WEIGHTS( kg ) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Payload | 1150 Kg | ||||||||||
| Max- GVW | 2645 Kg | ||||||||||
| Kerb Weight | 1495 Kg | ||||||||||
| Price | TK- 15,35,000/= | ||||||||||
CAPACITY |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Fuel Tank | 60 Liters | ||||||||||
SEATING CAPACITY |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Seating Capacity | D+2 | ||||||||||
